E-Bicycle Conversion Kit (AF) [Refurbished]

₹4,400.00 ₹7,500.00

Sold By: AggarwalEVehicles

Electric bicycle kit
project kit for conversion of a bicycle
DIY electric bicycle
24v 250w motor


Categories: Automotive

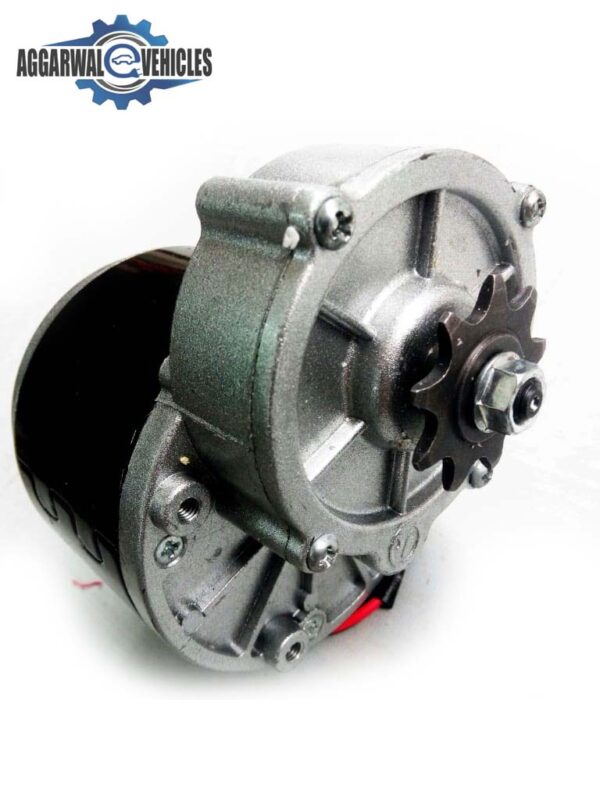

Motor Specifications:
Rated Voltage: 24 Volt DC
Rated Power: 250W
Ambient temperature: -20°C — 45°C
Turn potential: 5V
Brake potential: Low potential brake
RPM (after Reduction) – 300rpm
Rated Current – 10.41A
Full load current – 14.2A
Under voltage protection: 20.5V
Current Limiting protection: 20A
Torque Constant – 9 Nm (90 kg-cm)
Torque stall – 40 Nm (400 kg-cm)
Sprocket: 9Tooth only fits #410 bicycle chains


Controller Specifications:
Voltage: DC 24V
Under Pressure: 20V±1
Current Limit: 21A ±1
Level Brake: low level
Turn Voltage: 1.1-4.3V
Phase Angle: 60/120
Power: 250W
Includes attachments for motor, accelerator, brake, battery, battery charging, brake light, power lock.


Charger Specification:
This Charger is for lead acid 24V battery.
, accurate and reliable.
Current rating: 1.2A The charger is based on the modern high-frequency switching power supply structure, built-in microcomputer control, to achieve fast, balanced, turbulent, floating charge automatic control charging, charging speedto 2A

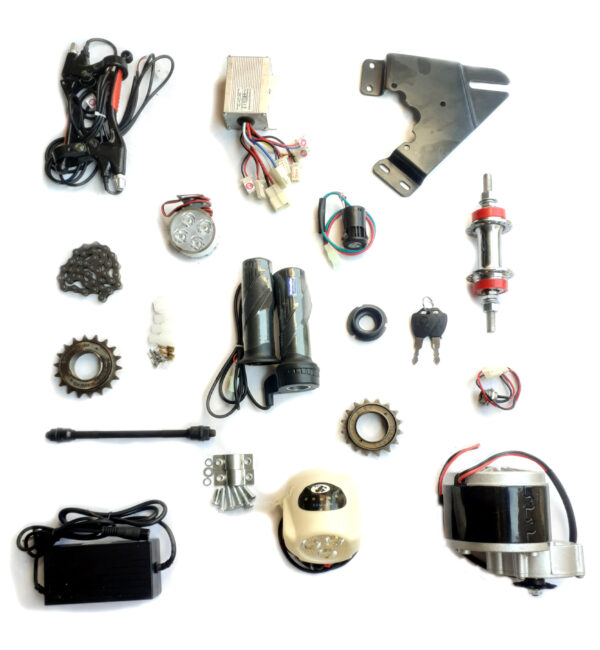

Package Includes:
1 x E-bike 24V 250W DC Geared Motor
1 x E-bike Motor Controller 24V 250W
1 x Lead Acid Battery Charger
1 x Long Axle
1 x Chain
1 x Free 1 x Throttle Set

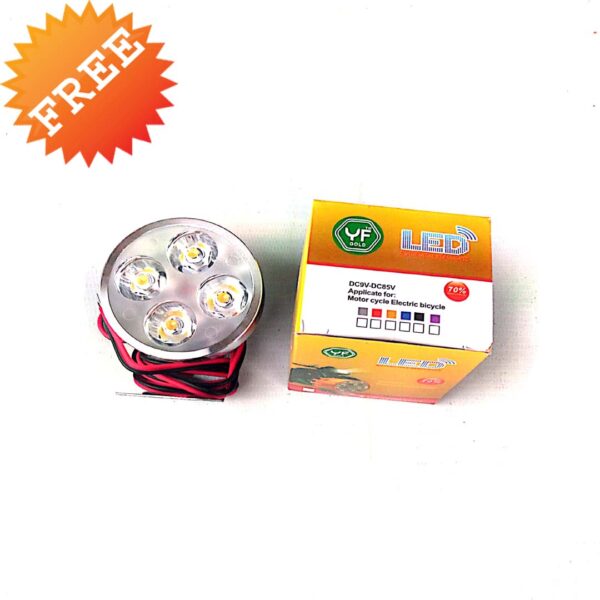

1 x Led Head Light With Inbuilt Horn
2 x Brake lever
1 x Mounting Plate
1 x Key Switch
1 x Charging Wheel
1 x Nut Bolts
1 x Pouch of Couplers

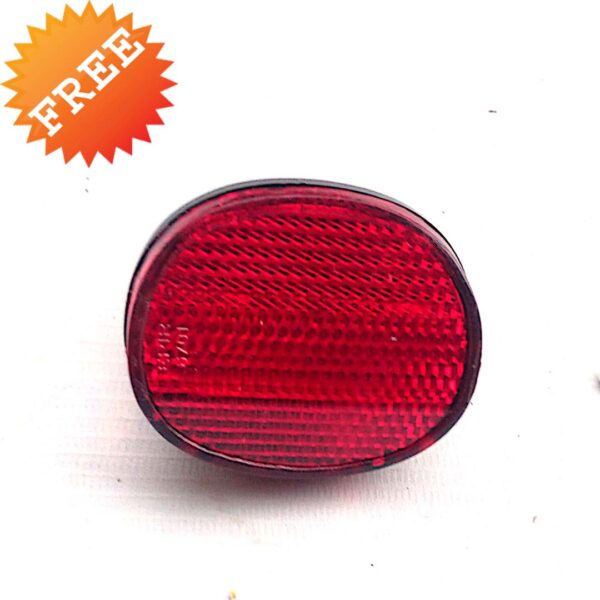

1 x Reflector



This kit does not include battery. It includes only charger.
This 24v 250w motor is best suited for single loading.
Maximum speed of motor is 22km/hr.
Use minimum 24v 12ah batteries for actual performance.
This cycle kit might have some scratches, dent and charger’s outer body has crack on it although it will work properly.
